Review
Published: 2019-06-15

Purple urine bag syndrome and dementia. Could E. Coli PUBS be a risk factor for development of sporadic Alzheimer disease? A review of literature

“Santa Corona” Hospital, Pietra Ligure (SV), Italy
PUBS Alzheimer disease UTI Dementia

Abstract

Introduction. PUBS (purple urinary bag syndrome) is determined by tryptophan, which is metabolized by
intestinal bacteria (like E. Coli) and expelled into the urine. This syndrome is common in bedridden patients,
usually with urinary cathetherization and neurological comorbidities like dementia. Latest evidences show a
possible role of E. Coli in Alzheimer disease.
Materials and methods. The PubMed database was evaluated according to year of pubblication (2000-2018)
and following search keys: “Purple urine bag syndrome”, “Gram-PUBS”, “Dementia Purple urine bag syndrome”,
“E. Coli PUBS”, “E. Coli Alzheimer disease”, “Gram-Alzheimer disease”. Search criteria were focused
on citations describing prognosis and correlation of PUBS with neurological comorbidities and correlation
between Gram - and neurophysiopathology of AD
Results. 8 references (3 case reports, 2 case series, 1 cohort study, 2 RCT) were found out of 344 citations
evaluated.
Conclusions. Latest evidences show a direct link between Gram- and B-amyloid genesis. Further studies are
required to clearly define if E. Coli PUBS might be a risk factor for development of sporadic Alzheimer disease.

GENERAL CONSIDERATIONS ON PUBS: DEFINITION, ETIOLOGY, PATOGENESIS AND DIAGNOSIS

PUBS (purple urinary bag syndrome) was first time described in 1978 with a patophysiological mechanism clarified in 1988 1. This condition is determined by tryptophan, which is metabolized by intestinal bacteria and expelled into the urine, after the by-product indoxyl sulfate, and digested into indoxyl by sulfatases/phosphatases produced by certain bacteria including Escherichia Coli (E. Coli), Proteus mirabilis, Morganella morganii (M. morganii), Klebsiella pneumoniae, Providencia stuartii, Providencia rettgeri and Pseudomonas aeruginosa, S. Agalactiae. This indoxyl may convert into indigo and indirubin in the urine drainage bag and create purple discoloration 2 3.

Relevant factor for UTIs are generally impaired cognitive function, disability in daily living and urine incontinence. There are several risk factors associated with PUBS: female gender; increased dietary tryptophan; alkaline urine; constipation; chronic catheterisation; high urinary bacterial load; renal failure; use of a polyvinylchloride (PVC) plastic catheter.

Female urinary anatomy it’s an already known risk factor that predisposes women to UTIs 4. Also If patients have an increased intake of tryptophan in their diet, then there is an increase in the substrate for the PUBS-causing bacteria to metabolise and produce red and blue pigments. Alkalinised urine facilitates the oxidation of indoxyl sulphate to indigo and indirubin, the blue and red pigments which mix to produce the purple colour. Although alkaline urine appears a key factor in PUBS, it is not always necessary, as evidenced by a case report of PUBS in acidic urine. Severe constipation often leads to urinary retention which leaves bacteria in the urine with more time to work on their substrate (indoxyl sulphate) to produce more red and blue pigments. Gastrointestinal conditions such as obstruction, intussusception, and ileal diversions can also increase PUBS, presumably because the bacteria are allowed more time to grow and deaminate tryptophan as in constipated patients. Elderly and bedridden patients with multiple comorbidities more often require long-term indwelling catheters which increase their risk of UTIs. A greater urinary bacterial load during a UTI will obviously increase the availability of bacterial sulphatases and phosphatases which convert indoxyl sulphate to indigo and indirubin. Lastly, renal failure increases the risk of PUBS because there is impaired clearance of indoxyl sulphate meaning the urinary bacteria have more substrate to produce the red and blue pigments and therefore purple urine 5 6.

Moreover we have to focus on risking misdiagnosis, so we’ll have to have to use a standard approaching to urine discoloration like using Oxford Urine Chart.

E. COLI AND ALZHEIMER’S DISEASE: ROLE OF GUT MICROBIOMA IN DEMENTIA AND NEW POSSIBLE RESARCH FRONTIERS

Alzheimer’s disease is determined by abnormal accumulation of B-protein, component of amyloid AB. This protein, formed by 40-42 aminoacids, is a metabolic derivative from APP (codified from chromosome 21) through the enzimatic action of B and g secretase. B protein has a proaggregant effect forming amyloid fibers. The state of polymerization induces, at neuronal level, the trigger of an oxidative stress resulting in neuronal apoptosis associated with mitochondrial damage 7 8. However, this hypothesis is paradoxical: the concentrations of AB required for fibrillization and neurotoxicity are higher than its physiological concentrations. Cognitive decline in AD patients is not correlated with the levels of senile plaque formation or insoluble Abeta formation; instead it correlates with the levels of synapse loss and the levels of soluble AB. These observations suggest the existence of soluble toxic forms of AB in AD brains; these forms have recently been identified to be oligomeric assemblies of AB. At present, AD is believed to begin with synaptic dysfunction caused by soluble AB oligomers. This hypothesis termed the oligomer hypothesis, is based on the following observations: The levels of AB oligomers are high in AD brains. Exogenous AB oligomers at physiological concentrations cause synaptic and cognitive dysfunction in vivo and synapse loss and neuronal death in vitro 9 10 11.

Different studies argue the ability, by Gram – (in particular E. Coli), in genesis of B-amyloid fibrils therefore potential etiological motivation of AD 12 13. Not only lipopolysaccharide or lipooligosaccharide, but also snc-RNA and both endotoxins and exotoxins can contribute to the development of neurotoxic and pro-inflammatory damage. This is determined by: that the GI tract microbiome are a potent source of neurotoxic species that are abundantly secreted by multiple Gram-negative bacilli in the gut (B. Fragilis, E. Coli, and others); that bacterial LPS are readily detectable in the neocortex and hippocampus of the AD brain, and at significantly higher abundance in AD than controls, indicating that LPS may be able to transit physiological barriers to access CNS compartments; that the transit of highly pro-inflammatory neurotoxins such as LPS across compromised GI tract and blood-brain barriers underscore the critical roles of cellular adhesion structures in allowing passage of noxious molecules from the GI tract into the systemic circulation and CNS; that extremely complex mixtures of neurotoxins may be generated by either single microbes or by combinations of bacilli that constitute the GI tract microbiome; that biophysical, gastrointestinal, and neurobiological barriers that may become more “leaky” with aging again underscore the important role of intact membrane barriers in moderating systemic and CNS inflammation and immune-mediated inflammatory disease; that bacterial complexity, neurotoxin abundance, speciation, and complexity in the CSF, blood serum or in brain tissues may be useful for the diagnosis of AD; and that studies on the thanatomicrobiome should be useful for a clearer understanding of the neuro- and micro-biological processes in operation over the PMI that should be useful in scientific research that utilizes post-mortem tissues in basic research, in forensic applications, in criminology and in the more accurate diagnosis of neurological disease; that the presence of frequent urinary infections, reality of the elderly with dementia, supported by E. Coli, can facilitate the deposition of amyloid by further elevation of the expression of the Piezo channell at the level of the hippocampus and the cortex 14-16.

MATERIALS AND METHODS

The PubMed database was evaluated according to year of pubblication (2000-2018) and the following search keys: “Purple urine bag syndrome”, “Gram-PUBS”, “Dementia Purple urine bag syndrome”, “E. Coli PUBS”, “E. Coli Alzheimer disease”, “Gram-Alzheimer disease”. A total of 344 articles were found. Subsequently, the real relevance to the subject of this review was assessed, thus arriving at 50 articles. At this point the following inclusion criteria were used: references that focus on the prognosis and correlation of PUBS with neurological/demented frameworks; if the sources used were focused on the correlation between Gram – and neurophysiopathology of AD.

This allowed to further select 8 references, for a total of 344 articles, divided into: case report: 3 references, 3 patients; case series: 2 references, 20 patients; cohort studies: 1 reference, 643 patients; RCT: 2 references, 125 brain.

A summary table and a PRISME diagram were obtained and listed below (Tab. I).

RESULTS

A total 344 citations on PubMed database, after reading full text or abstract were used 50 references of the database used. Analyzing total population and statical relevacy were chosen only 8 references (791 samples) (Fig. 1).

E. Coli substained UTIs are a common reality in old patients and can show themselves in PUBS (a striking clinical manifestation which can be of particular concern among the care staff) or with more common clinical features. Clearly relevant is the neurological consequences due to UTI (often caused by intestinal bacterial flora) 15-22.

CONCLUSIONS

Cognitive impairment, like urine incontinency and ADL disability, is a risk factor for UTIs development 23. This condition represents a burdensome financial cost and reveals that they are very important in understanding length of stay and costs in older and complex patients 24. Alzheimer dementia have a complex paophiology determined by a neuronal damage which amyloid has a central role, latest evidences show a primary role of microbiome in development of neurocognitive impairments calling: the gut-brain axis. The interaction between the host and its gut microbiome is a complex relationship whose manipulation could prove critical to preventing or treating not only various gut disorders, like irritable bowel syndrome (IBS) and ulcerative colitis (UC), but also central nervous system (CNS) disorders, such as Alzheimer’s and Parkinson’s diseases.

In particular about E. Coli, a Gram – bacterium member of gut microbiome and also causing UTIs (like PUBSs), is defined like a possible cause of amyloidogenesis 22. This relationship could depend to LPS production from major bacterial species of the GI tract, such as the abundant Gram-negative bacilli B. Fragilis and E. Coli, secrete a remarkably complex array of pro-inflammatory neurotoxins which, when released from the confines of the healthy GE tract, are pathogenic and highly detrimental to the homeostatic function of neurons in the central nervous system (CNS) 14 16.

Like said before there’s actually no evidences directly connecting E. Coli PUBS and Alzheimer’s disease, but often this urological syndrome (like others UTIs) is commonly in old patients with cognitive impairment (like AD). So it’s needed more studies assessing the relationship between PUBS and AD, this could establish PUBS like a “alarm bell” for alterations of gut microbiome probably developing in neurocognitive impairment and also further increase of disability 22-24.

Figures and tables

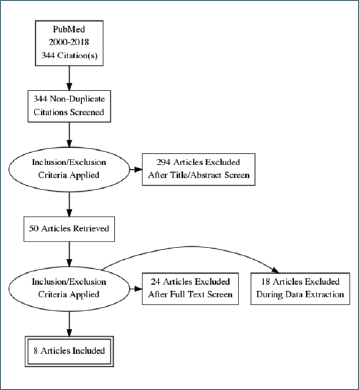

Figure 1.PRISME diagram: 8 of 344 citations evaluated were used in this article.

Authors Date Study type Details of study population Materials and methods Conclusions
Mondragón-Cardona A. et al., J Infect Dev Ctries 2015 Case report 71-year-old, F, catheterized, AD, bedridden, neurological sequelae Evidence of E. Coli, E. Faecalis, P. Mirabilis in urinocolture Focus on PUBS outcome in multi-morbidity patients
Eriksson I et al., International Psychogeriatrics 2011 Cohort study 643 > 85 years, F, at home. 504 with UTIs 504 UTI and almost half of them (44.8%) were diagnosed to be delirious or having had episodes of delirium during the past month. 132 of the 504 women (27.2%) were delirious or had had episodes of delirium during the past month and 39 (28.5%) of them were diagnosed to have a UTI UTI is a common cause of delirium
Reginald A et al., J Family Med Prim Care. 2015 Case report 83 years, M, IPB, renal failure, permanent cv Evidence of Klebsiella pneumonia, Morganella Morganii, Enterococcus, Citrobaterdiversus and Pseudomonas aeruginosa in urinoculture Correlation with poor prognosis especially in old patients with permanent VC
Kalsi DS et al., Disease markers. 2017 Case series 10 cases of PUBS determined by various etiological factors 4 out of 10 cases of PUBS have been highlighted in patients with dementia 5 cases out of 10 PUBS supported by E. Coli Correlation with already known microbiological risk factors via exposure of clinical cases
Bhattarai M et al., Case Rep Infect Dis. 2013 Case reports An 87-year-old Caucasian female, dementia, hypertension, hyperlipidemia, and recurrent UTI Urinocultures of Enterococci and multiresistant P. aeruginosa PUBS can be associated with multiresistant microbes. The color change of the urine should not be left lost but investigated immediately due to risk of complications
Zhan X et al., American Academy of Neurology 2016 RCT 24 brain samples with AD 18 brain samples without Lipopolysaccharide (LPS) and E. Coli K99 pili protein were evaluated by Western blots and immunocytochemistry. Human brain samples were assessed for E. Coli DNA followed by DNA sequencing E. Coli K99 and LPS levels were greater in AD compared to control brains. LPS is in amyloid plaques and around vessels in AD brain
Lin CH et al., Clinical Interventions in Aging 2008 Case series 10 case reports. 5 with AD 60-89 years-old Identified in the urinocoltures: Escherichia strains, Klebsiella Pneumoniae, Providencia rettegeri and Proteus mirabilis Necessity to treat with more aggressiveness such patients especially if allured for bad prognosis
Cattaneo A et al., Neurobiology of Aging 2017 RCT 73 brains with AD (40 Amy+, 33 Amy -) and 10 normal brains In both study groups have been assessed both microbiological analysis of stood samples (frequently founded GMB taxa like Escherichia/Shigella, Pseudomonas aeruginosa, Eubacterium rectale, and others) and the blood expression levels of cytokines (pro-inflammatory cytokines: CXCL2, CXCL10, interleukin [IL]-1B, IL-6, IL-18, IL-8, inflammasome complex (NLRP3), tumor necrosis factor-alpha [TNF-a]; anti-inflammatory cytokines: IL-4, IL-10, IL-13) An increase in the abundance of a pro-inflammatory GMB taxon, Escherichia/Shigella, and a reduction in the abundance of an anti-inflammatory taxon, E. Rectale, are possibly associated with a peripheral inflammatory state in patients with cognitive impairment and brain amyloidosis
Table I.Summary table of references used in this review.

References

  1. Barlow GB, Dickson JAS. Purple urine bags. Lancet. 1978; 28:220-1.
  2. Lin C-Hung, Huan H-T, Chien C-C. Purple urine bag syndrome in nursing homes: ten elderly case reports and a literature review. Clin Interv Aging. 2008; 3:729-34.
  3. Ficher KN, Araújo AA, G. Purple urine bag syndrome: case report for Streptoccocus agalactiae and literature review. J Bras Nefrol. 2016; 38:470-2.
  4. Caljouw MAA, den Elzen WPJ, Cools HJM. Predictive factors of urinary tract infections among the oldest old in the general population. A population-based prospective follow-up study. BMC Medicine. 2011; 9:57.
  5. Kalsi DS, Ward J, Lee R. Purple urine bag syndrome: a rare spot diagnosis. Disease Markers. 2017;1-6.
  6. Yang HW, Su YJ. Trends in the epidemiology of purple urine bag syndrome: a systematic review. Biomed Rep. 2018; 8:249-56.
  7. Kosenko EA, Solomadin IN, Tikhonova LA. Pathogenesis of Alzheimer disease: role of oxidative stress, amyloid-β peptides, systemic ammonia and erythrocyte energy metabolism. CNS & Neurological Disorders - Drug Targets. 2014; 13:112-9.
  8. Galindo MF, Ikuta I, Zhu X. Mitochondrial biology in Alzheimer’s disease pathogenesis. J Neurochem. 2010; 114:933-45.
  9. Fessel J. Amyloid is essential but insufficient for Alzheimer causation: addition of subcellular cofactors is required for dementia. Int J Geriatr Psychiatry. 2018; 33:e14-e21.
  10. Tomiyama T. Involvement of beta-amyloid in the etiology of Alzheimer’s disease. Brain Nerve. 2010; 62:691-9.
  11. Fessel WJ. Concordance of several subcellular interactions initiates alzheimer’s dementia: their reversal requires combination treatment. Am J Alzheimers Dis Other Demen. 2017; 32:166-81.
  12. Garai K, Crick SL, Mustafi SM. Expression and purification of amyloid-beta peptides from Escherichia Coli. Protein Expr Purif. 2009; 66:107-12.
  13. Shu Q, Crick SL, Pinkner JS. The E. Coli CsgB nucleator of curli assembles to β-sheet oligomers that alter the CsgA fibrillization mechanism. Proc Natl Acad Sci USA. 2012; 109:6502-7.
  14. Zhao Y, Jaber V, Lukiw WJ. Secretory products of the human GI tract microbiome and their potential impact on Alzheimer’s disease (AD): detection of lipopolysaccaride (LPS) in AD hippocampu. Front Cell Infect Microbiol. 2017; 7:318.
  15. Velasco-Estevez M, Mampay M, Boutin H. Infection augments expression of mechanosensing piezo1 channels in amyloid plaque-reactive astrocytes. Front Aging Neurosci. 2018; 10:332.
  16. Zhan X, Stamova B, Jin LW. Gram-negative bacterial molecules associate with Alzheimer disease pathology. Am Academy Neurology. 2016;2324-32.
  17. Mondragón-Cardona A, Jiménez-Canizales CE, Alzate-Carvajal V. Purple urine bag syndrome in an elderly patient from Colombia. J Infect Dev Ctries. 2015; 9:792-5.
  18. Eriksson I, Gustafson YG, Fagerström L. Urinary tract infection in very old women is associated with delirium. Int Psychogeriatr. 2011; 23:496-502.
  19. Reginald A, Manjunath K, Srinivasan R. Purple urine bag syndrome: time for awareness. J Family Med Prim Care. 2015; 4:130-1.
  20. Bhattarai M, Bin Mukhtar H, Davis TW. Purple urine bag syndrome may not be benign: a case report and brief review of the literature. Case reports in Infectious Diseases. 2013; 3
  21. Cattaneo A, Cattane N, Galluzzi S. Association of brain amyloidosis with pro-inflammatory gut bacterial taxa and peripheral inflammation markers in cognitively impaired elderly. Neurobiol Aging. 2017; 49:60-8.
  22. Bail K, Goss J, Draper B. The cost of hospital-acquired complications for older people with and without dementia; a retrospective cohort study. BMC Health Serv Res. 2015; 15:91.
  23. Ghaisas S, Maher J, Kanthasamy A. Gut microbiome in health and disease: linking the microbiome-gut-brain axis and environmental factors in the pathogenesis of systemic and neurodegenerative diseases. Pharmacol Ther. 2016; 158:52-62.
  24. Sharon G, Sampson TR, Geschwind DH. The central nervous system and the gut microbiome. Cell. 2016; 167:915-32.
